Advanced: project structure and customization

This section is intended for users who want to modify the reference design — adding IP to the block design, changing constraints, adding packages or drivers to the Linux images, and so on. It describes how the repository is laid out, how the build flow works, how the block designs assemble the QSFP28 ports, how the Linux BSPs are composed, and what has been added on top of the stock AMD BSPs.

The actual build instructions are in build_instructions; this section is about understanding the project well enough to modify it.

Repository layout

.
├── build.py                   <- Cross-platform build runner (the build logic)
├── build.sh / build.bat       <- Shims that invoke build.py (Linux/git bash, Windows)
├── Makefile                   <- Deprecated thin wrapper around build.sh (removed next version)
├── README.md
├── config/                    <- Source-of-truth design metadata and auto-generation
│   ├── data.json
│   └── update.py
├── docs/                      <- This documentation (Sphinx + Read the Docs)
├── Vivado/
│   ├── scripts/
│   │   ├── build.tcl          <- Project creation + block design assembly
│   │   └── xsa.tcl            <- Synthesis, implementation, XSA export
│   └── src/
│       ├── bd/
│       │   ├── bd_versal.tcl  <- Block design: Versal (MRMAC)
│       │   ├── bd_zynqmp.tcl  <- Block design: Zynq UltraScale+ (CMAC / 40G/50G subsystem)
│       │   └── bd_mb.tcl      <- Block design: MicroBlaze (KCU116)
│       ├── constraints/
│       │   └── <target>.xdc   <- One XDC per target (pin assignments)
│       └── hdl/
│           ├── mrmac_axis_adapter.v   <- MRMAC client ↔ AXI4-Stream adapters (+ RX frame FIFO)
│           ├── rx_frame_fifo.v        <- RX store-and-forward frame FIFO
│           ├── axis_rx_flush_guard.v  <- RX flush guard in front of the MCDMA S2MM
│           └── axis_tx_frame_gate.v   <- TX frame gate (40G)
├── Vitis/
│   ├── common/src/            <- Bare-metal echo server (main.c, mrmac.c, hse.c, si5328.c, vadj.c)
│   └── py/                    <- Vitis workspace / boot-file build scripts
├── PetaLinux/
│   └── bsp/                   <- Board BSPs (vck190, zcu1xx, kcu116) + port-config overlays (ports-*)
└── Yocto/
    ├── scripts/               <- The Yocto / EDF build engine (init, configure, build, package)
    └── bsp/                   <- Board layers (vck190, zcu1xx) + port-configs/ports-*

Per-target build outputs are written to Vivado/<target>/, Vitis/<target>_workspace/, Vitis/boot/<target>/, PetaLinux/<target>/ and Yocto/<target>/; packaged boot-image zips are written to bootimages/. None of these are committed.

Target naming

A target label is the canonical handle for a single design and is passed to every build command via --target. It encodes the board and, where the board has more than one usable FMC connector, the connector (zcu102_hpc0, vck190_fmcp1); the RFSoC and KCU116 labels are the board name alone. An _ss suffix marks the 40G variant (40G/50G Ethernet Subsystem) of a board whose default target is 100G (zcu111_ss, zcu208_ss, zcu216_ss, kcu116_ss). The first underscore-delimited token is the board and selects the board BSP (PetaLinux/bsp/<board>/, Yocto/bsp/<board>/).

The complete list of valid targets comes from config/data.json; run ./build.sh list (or ./build.sh labels for one per line) to print it.

`config/data.json` and `config/update.py`

config/data.json is the canonical source of truth for the set of supported designs and their per-target metadata: board name and URL, the QSFP28 ports instantiated (lanes, see the note below), line rate (linkspeed), FMC connector, which software flows the target supports (baremetal, petalinux, yocto), the Vivado edition (license), whether the MAC needs an IP license (ip_license), and the Linux port-config overlay (portcfg). The build.py runner reads it at runtime. config/update.py regenerates the auto-managed files that are not read at runtime: the target tables in the top-level README.md, the .gitignore, and the residual UPDATER block in PetaLinux/Makefile — the sections delimited by UPDATER START / UPDATER END (or  / ) comment markers. The Sphinx documentation also reads data.json directly to render the supported-board and target-design tables.

Note

Terminology: the lanes field of each design holds the list of QSFP28 ports the design instantiates ([0] for port 0 only, [0, 1] for both ports). Each QSFP28 port is a single MAC that uses four transceiver lanes internally. This mirrors how the Quad SFP28 FMC repo uses lanes to mean SFP28 ports, so the same update machinery is reused unchanged.

When adding or modifying a target, edit data.json and re-run update.py (from the config/ directory). Do not hand-edit content between the updater markers; it will be overwritten on the next regeneration. The portcfg field names the overlay that the Linux flows apply (ports-versal-01, ports-zu100g-01, ports-zu100g-0, ports-zu40g-01; the KCU116 entries ports-mb100g-0 / ports-mb40g-0 belong to the unsupported PetaLinux BSP).

Build runner

All build stages are driven by the cross-platform build.py runner at the root of the repository, invoked through the build.sh shim on Linux / git bash or build.bat on Windows (identical arguments). It reads the target list and per-target attributes straight from config/data.json, builds whatever a requested stage depends on automatically, skips anything already built, and locates and sources the AMD tools itself — so there is no need to source the Vivado / Vitis / PetaLinux settings scripts beforehand.

Command	Stage
`project`	Create the Vivado project (`.xpr`) and block design.
`xsa`	Synthesise, implement and export the hardware (`.xsa`).
`standalone`	Create the Vitis workspace, build the echo server and its boot file.
`petalinux`	Create the PetaLinux project from the XSA, apply the BSP overlays, build and package.
`yocto`	Generate the System Device Tree and EDF machine from the XSA, build the image.
`package`	Gather the built boot artifacts into `bootimages/*.zip` (rewrites a zip whose artifacts are newer).
`all`	Build every stage the target supports, then `package`.
`list`, `labels`, `status`, `clean`	List targets; per-stage artifact state; delete generated outputs (`--keep-boot` keeps the boot files).

Run ./build.sh --help and ./build.sh <command> --help for all options. Per-target lock files (.<target>.lock at the repository root) prevent two concurrent builds of the same target from clobbering each other.

Tip

./build.sh project --target <t> creates the block design and runs validate_bd_design without synthesis — use it to catch block-design wiring errors fast before committing to the long XSA build.

Vivado side

build.tcl selects the block-design script from the target’s family (bd_versal.tcl, bd_zynqmp.tcl or bd_mb.tcl) and passes it the board, the target, the list of QSFP28 ports and the line rate (target_dict). It adds Vivado/src/hdl/*.v to the project before sourcing the block design, so that the RTL modules can be instantiated as module references, and checks that Vivado is version 2025.2 (the block-design Tcl APIs are not stable across releases). Each script creates one qsfp_port hierarchy per port (create_qsfp_port proc) and sizes the shared cells (interconnect, interrupts, NoC ports) from the number of ports, so the same script builds single-port and two-port designs.

To see the netlist as actually built, open the project from Vivado/<target>/, or inspect the saved .bd under Vivado/<target>/<target>.gen/sources_1/bd/qsfp/.

Zynq UltraScale+ and MicroBlaze block design

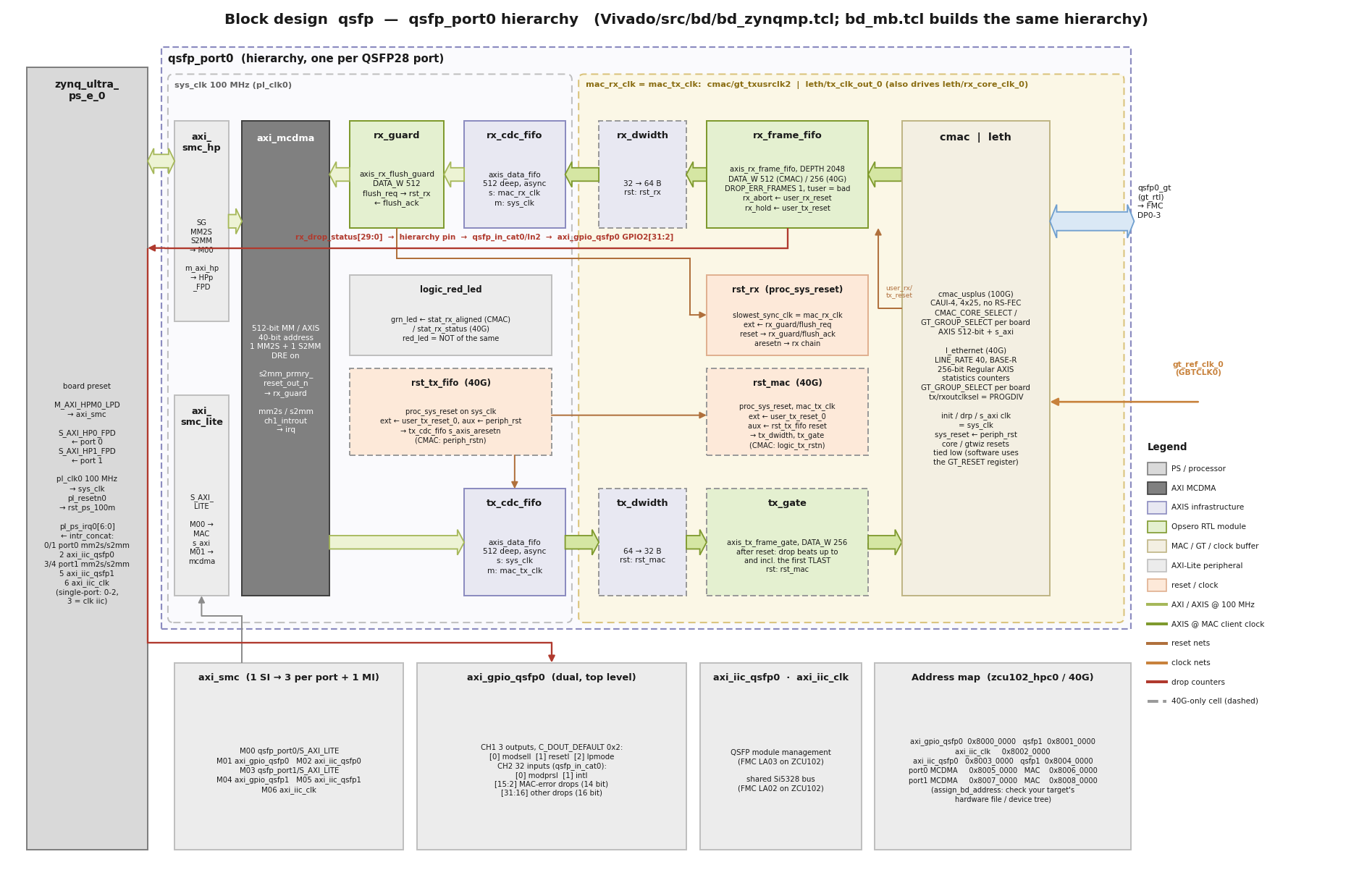

Block design of one QSFP28 port, Zynq UltraScale+ / MicroBlaze

bd_zynqmp.tcl (and bd_mb.tcl, which builds the identical qsfp_port hierarchy behind a MicroBlaze, DDR4 MIG, UART16550, timer, interrupt controller and QSPI) per port:

MAC. For a 100G target, a cmac_usplus (CAUI-4, 4x25, no RS-FEC, 512-bit AXIS + AXI4- Lite) with CMAC_CORE_SELECT / GT_GROUP_SELECT per board: ZCU111 port 0 CMACE4_X0Y0 on X0Y8–X0Y11 and port 1 CMACE4_X0Y1 on X0Y12–X0Y15; ZCU208/ZCU216 CMACE4_X0Y1 on X0Y12–X0Y15 (port 0 only); KCU116 CMACE4_X0Y0 on X0Y12–X0Y15. For a 40G target, an l_ethernet (40G, BASE-R, 256-bit regular AXI4-Stream, statistics counters, AXI4-Lite) on one GT quad per port: ZCU102 Quad_X1Y2 / Quad_X1Y1, ZCU106 Quad_X0Y3 / Quad_X0Y4, ZCU111 Quad_X0Y2 / Quad_X0Y3, ZCU208/ZCU216 Quad_X0Y3 / Quad_X0Y4, KCU116 Quad_X0Y3. The MAC’s core and GT-wizard reset inputs are tied off; software resets the GT through the MAC’s GT_RESET register.
MAC clocking. The CMAC’s AXIS client runs on its gt_txusrclk2 (322.27 MHz) and its rx_clk input is driven from the same clock. The l_ethernet core in this configuration has a single core clock, tx_clk_out_0 (312.5 MHz): it launches the RX AXI4-Stream too, so rx_core_clk_0 and every block on the RX stream are clocked by tx_clk_out_0, exactly as in the IP’s example design.
RX chain. rx_frame_fifo (axis_rx_frame_fifo, 2048 beats, drops frames the MAC flags bad) → rx_dwidth (40G only, 32 → 64 bytes) → rx_cdc_fifo (512 deep, asynchronous) → rx_guard (axis_rx_flush_guard) → MCDMA S2MM. The frame FIFO is the only block that sees the MAC’s stream, which has no ready signal; everything behind it honours back-pressure.
RX resets. The RX chain is deliberately not reset by MAC or GT resets, which could cut a frame the DMA is reading. A MAC RX reset (user_rx_reset) or an interruption of the MAC clock (user_tx_reset) only makes the frame FIFO discard the frame it is receiving (rx_abort, rx_hold). The whole chain is flushed only when the MCDMA’s S2MM channel is reset (every interface open/close, DMA error recovery): the flush guard blocks the stream into the S2MM, requests the flush through the rst_rx reset block in the MAC clock domain, waits for it to complete, and releases the stream on a frame boundary.
TX chain. MCDMA MM2S → tx_cdc_fifo → (40G only) tx_dwidth (64 → 32 bytes) → tx_gate (axis_tx_frame_gate) → MAC. On the 40G targets the TX chain on the MAC clock is reset (rst_mac) after any interruption of that clock, and the CDC FIFO from its sys_clk side (rst_tx_fifo), so the FIFO’s pointers stay consistent; the TX gate then drops the tail of a frame whose head was flushed, up to and including its last beat.
MCDMA. axi_mcdma, one MM2S and one S2MM channel, 512-bit, 40-bit addressing, with its three AXI masters merged by axi_smc_hp into S_AXI_HP0_FPD (port 0) or S_AXI_HP1_FPD (port 1); on the MicroBlaze they join the MIG’s SmartConnect.
LEDs. Green = the MAC’s RX aligned / status output, red = its inverse.

At the top level, per port: axi_gpio_qsfp (sideband + drop counters, see below), axi_iic_qsfp (module management), and one shared axi_iic_clk for the Si5328. A port that a target does not use (port 1 on ZCU208/ZCU216 at 100G and on the KCU116) gets constant sideband outputs: ModSelL = 1, ResetL = 0 (module held in reset), LPMode = 1, LEDs off.

Versal block design

Block design of one QSFP28 port, Versal

bd_versal.tcl adds the CIPS with the DDR / NoC automation, a 100 MHz system clock and a 390.625 MHz MRMAC client clock (two clock wizards on pl0_ref_clk), and per port a GTY gt_quad_base (with its util_ds_buf reference-clock buffer and an APB3 bridge) and the qsfp_port hierarchy. The design choices specific to driving a QSFP28 port as 1x100GbE CAUI-4 with the MRMAC are:

GT Quad configuration

The GT quad uses PRESET None and specifies the full PROT0 field set manually: GTY, four lanes at 25.78125 Gb/s, LCPLL integer-N, 322.265625 MHz reference clock, 80-bit RAW datapath. The MRMAC requires an 80-bit RAW GT datapath that no named Ethernet preset provides, which is why PRESET None is used and every field is set explicitly. The field set is merged onto the 2025.2 IP’s default LR0 dictionary, applying only field names that exist in this IP version.

Per-lane CAUI-4 user clocking

CAUI-4 bonds four lanes and requires them to align, so each lane’s recovered RX clock must drive that lane’s MRMAC serdes/core clock:

RX: each of the four GT lanes gets its own pair of BUFG_GT buffers — a full-rate usrclk and a half-rate (/2) usrclk2. The MRMAC rx_serdes_clk/rx_core_clk buses take the per-lane full-rate clocks; rx_alt_serdes_clk takes the per-lane half-rate clocks; the GT chN_rxusrclk inputs take the per-lane half-rate clocks.
TX: all four lanes share the TX PLL, so a single ch0 pair drives all four TX lanes (tx_core_clk = ch0 full-rate ×4; tx_alt_serdes_clk and the GT chN_txusrclk inputs = ch0 half-rate).

Warning

Driving the MRMAC RX serdes/core clocks from ch0 alone (broadcasting one lane’s recovered clock to all four) leaves lanes 1–3 sampled in the wrong clock domain — those PCS lanes never block-lock and 100G alignment never completes, even with a passive loopback. The per-lane clocking above is mandatory for CAUI-4. (The AXIS client clocks tx_axi_clk/rx_axi_clk are a separate, single 390.625 MHz domain — do not confuse the two clock buses.)

MRMAC client AXIS adapters

The MRMAC 100G “Independent 384b Non-Segmented” client is not a standard AXI4-Stream bus. In the block design its axis_rx_port0 / axis_tx_port0 interfaces are handshake-only; the 384-bit data rides on six separate 64-bit lane ports (rx/tx_axis_tdata0..5) plus six per-lane tkeep_user0..5[10:0] control words. Feeding the handshake-only interface straight into a stock axis_dwidth_converter mis-delineates frames (one packet per 384-bit beat).

Vivado/src/hdl/mrmac_axis_adapter.v provides the two adapters:

mrmac_tx_axis_adapter unpacks a standard 384-bit AXIS stream (tdata[383:0], tkeep[47:0], tlast) into the six MRMAC lanes.
mrmac_rx_axis_adapter packs the six lanes into a standard 384-bit stream and contains the store-and-forward RX frame FIFO (FIFO_DEPTH 2048 × 48 bytes = 96 KB, about 26 block RAMs per port). The MRMAC RX has no ready signal, and the S2MM path behind it (512 bits × 100 MHz = 51.2 Gb/s) is slower than the 100G line, so the FIFO absorbs line-rate bursts and downstream stalls; when it overflows it drops frames whole, never truncated or merged. Frames the MAC flags as errored are dropped too (DROP_ERR_FRAMES = 1).

Width conversion, CDC and MCDMA

The MRMAC client runs at 390.625 MHz / 384-bit; the MCDMA and NoC run at the 100 MHz system clock / 512-bit. Each direction has an axis_dwidth_converter (384 ↔ 512 bit) and an asynchronous axis_data_fifo (512 deep) for the clock-domain crossing. The AXI MCDMA (one MM2S and one S2MM channel, 512-bit, 64-bit addressing) moves packet data to/from DDR over three NoC slave ports per QSFP28 port (scatter-gather, MM2S, S2MM → memory-controller ports MC_0, MC_1, MC_2).

MRMAC placement

Both MRMACs default to MRMAC_LOCATION_C0 = MRMAC_X0Y0, which makes port 1 fail placement (“bel is occupied”). The script pins each port’s MRMAC to the integrated-MAC site in the clock region of its GT quad:

port 0 : GTY_QUAD_X1Y1 (region X9Y1) -> MRMAC_X0Y0
port 1 : GTY_QUAD_X1Y2 (region X9Y2) -> MRMAC_X0Y2

GT-control GPIO

The xilinx_axienet MRMAC driver resets the GT and reads the reset-done flags through a dual-channel AXI GPIO per port (axi_gpio_gt): channel 1 drives gt_reset_all, gt_reset_tx_datapath and gt_reset_rx_datapath (each replicated to the four lanes) plus two spare lines; channel 2 returns the TX/RX reset-done flags and the RX drop counters (see below). The device tree points the driver at these lines with the gt-*-gpios properties.

QSFP28 module sideband and power-on reset

Each port has a dual-channel AXI GPIO (axi_gpio_qsfp) for the QSFP28 module’s sideband signals. Channel 1 (outputs): bit 0 = ModSelL, bit 1 = ResetL, bit 2 = LPMode. Channel 2 (inputs): bit 0 = ModPrsL, bit 1 = IntL (and, on the Zynq UltraScale+ and MicroBlaze targets, the drop counters in the upper bits).

ResetL is active-low — the module is held in reset while the line is 0. The GPIO is given a power-on output default of 0x2 (CONFIG.C_DOUT_DEFAULT), so the lines come up ModSelL = 0, ResetL = 1 (released), LPMode = 0 (high power): the module is enabled the instant the device is configured, before any software runs.

Important

Without this default the GPIO powers up at 0x0, so ResetL = 0 and the QSFP28 module is held in reset — its laser stays off and no link comes up. A passive electrical loopback still works in that state (it needs no powered module), which masks the problem; a real optical module or AOC stays dark until ResetL is released.

The drivers manage only the GT resets; they never touch the module’s reset, which is board glue. The lines stay software-controllable through the GPIO (for example to power-cycle a module by writing 0x0 and then 0x2 to the GPIO’s channel 1 data register at offset 0x0).

RX drop counters

The RX frame FIFO of each port counts the frames it drops. The counters are free running since the device was configured (they are not cleared by MAC, link or DMA resets) and wrap around. They are read from channel 2 of an AXI GPIO (GPIO2_DATA, offset 0x8 from the GPIO’s base address), and the layout depends on the device family:

Versal (vck190_fmcp1) — channel 2 of the GT-control GPIO axi_gpio_gt, read at 0x8007_0008 (port 0) and 0x8009_0008 (port 1):

Bits	Content
`[0]`	GT TX reset done
`[1]`	GT RX reset done
`[7:2]`	Frames dropped because the MAC flagged them bad (6-bit counter)
`[31:8]`	Frames dropped because the RX frame FIFO was full (24-bit counter)

Zynq UltraScale+ and MicroBlaze targets — channel 2 of the sideband GPIO axi_gpio_qsfp, read at <axi_gpio_qsfp base> + 0x8 (for example 0x8000_0008 / 0x8001_0008 on the ZCU102 and ZCU106; see the address maps below):

Bits	Content
`[0]`	`ModPrsL`
`[1]`	`IntL`
`[15:2]`	Frames dropped because the MAC flagged them bad (FCS error etc., 14-bit counter)
`[31:16]`	Frames the MAC received good but the FIFO dropped: FIFO full, frame too long for the FIFO, or frame cut by a MAC/GT reset (16-bit counter)

On these targets, frames the MAC received good = frames received by Linux + rx_dma_pkt_drop (ethtool -S) + bits [31:16]. The fields are small wrapping counters meant for short-interval diagnostics (read before and after a test): the 14-bit error field can wrap within a second of bad frames at line rate. For long-term error counts on the 40G targets use the 64-bit hse_mac_rx_* counters of ethtool -S (see Testing under Linux). The Linux gpio line numbers of ModPrsL / IntL are unaffected by the counters.

From Linux, the register can be read with a physical-memory access tool such as devmem2, if your image includes one (for example devmem2 0x80000008 w).

Address and interrupt maps

The control peripherals are AXI-Lite slaves of the processor (M_AXI_LPD on Versal, M_AXI_HPM0_LPD on Zynq UltraScale+, the MicroBlaze peripheral interconnect on the KCU116), 64 KB each. Addresses are assigned by assign_bd_address, so check your target’s hardware (the .xsa or the generated device tree) after modifying a block design.

Peripheral	`vck190_fmcp1`	`zcu102_hpc0`, `zcu106_hpc0`, `zcu111`, `*_ss` (2 ports)	`zcu208`, `zcu216` (1 port)	`kcu116`, `kcu116_ss`
MAC, port 0 / 1	`0x8000_0000` / `0x8001_0000`	`0x8006_0000` / `0x8008_0000`	`0x8004_0000`	`0x44A3_0000`
AXI MCDMA, port 0 / 1	`0x8008_0000` / `0x800A_0000`	`0x8005_0000` / `0x8007_0000`	`0x8003_0000`	`0x44A2_0000`
QSFP sideband GPIO, port 0 / 1	`0x8002_0000` / `0x8003_0000`	`0x8000_0000` / `0x8001_0000`	`0x8000_0000`	`0x4000_0000`
GT-control GPIO, port 0 / 1	`0x8007_0000` / `0x8009_0000`	—	—	—
QSFP module IIC, port 0 / 1	`0x8005_0000` / `0x8006_0000`	`0x8003_0000` / `0x8004_0000`	`0x8002_0000`	`0x4081_0000`
Si5328 IIC (shared)	`0x8004_0000`	`0x8002_0000`	`0x8001_0000`	`0x4080_0000`

The KCU116 designs also contain the UART16550 (0x44A1_0000), the QSPI controller (0x44A0_0000), the AXI timer (0x41C0_0000), the interrupt controller (0x4120_0000) and a reset GPIO (0x4001_0000).

Interrupts are connected in this order (on Versal to pl_ps_irq0..6, SPI 84 + index; on Zynq UltraScale+ to pl_ps_irq0[6:0]; on the KCU116 to the AXI interrupt controller):

Index	Two-port targets	Single-port Zynq UltraScale+	KCU116
0	Port 0 MCDMA `mm2s`	Port 0 MCDMA `mm2s`	Port 0 MCDMA `mm2s`
1	Port 0 MCDMA `s2mm`	Port 0 MCDMA `s2mm`	Port 0 MCDMA `s2mm`
2	Port 0 QSFP module IIC	Port 0 QSFP module IIC	Port 0 QSFP module IIC
3	Port 1 MCDMA `mm2s`	Si5328 IIC	Si5328 IIC
4	Port 1 MCDMA `s2mm`		UART16550
5	Port 1 QSFP module IIC		AXI timer
6	Si5328 IIC		QSPI

The MACs themselves have no interrupt in these designs (hence the harmless Ethernet core IRQ not defined boot message on the Zynq UltraScale+ targets).

Constraints

Vivado/src/constraints/<target>.xdc contains the pin assignments: the transceiver lanes (DP0–3 for port 0, DP4–7 for port 1 where present), the two GT reference clocks (GBTCLK0/GBTCLK1), the three IIC buses (shared Si5328 on LA02, QSFP0 on LA03, QSFP1 on LA17_CC), and the per-port QSFP28 sideband I/O and user LEDs. On some boards the FMC DP lanes are not wired to the GT channels in order; each XDC lists the FMC DP number of every lane in a comment (Ethernet multi-lane PCS tolerates the lane permutation).

Modifying the block design

Edit the block-design script of the target’s family. Most per-port logic lives in the create_qsfp_port proc, which is called once per entry in ports; structural counts (interconnect masters, NoC ports, interrupts) are derived from the number of ports. After editing, delete the existing project directory and rebuild:

rm -rf Vivado/<target>
./build.sh xsa --target <target>

Linux BSPs

BSP composition

Both Linux flows compose the image from two fragments:

A board BSP: PetaLinux/bsp/<board>/project-spec/ or Yocto/bsp/<board>/. It provides the board kernel and U-Boot configuration, the board device-tree fixes, the kernel patches, the rootfs configuration and the qsfp-loopback-test recipe.
A port-config overlay: PetaLinux/bsp/<portcfg>/ or Yocto/bsp/port-configs/<portcfg>/, selected by the target’s portcfg field in data.json. It provides port-config.dtsi, the device-tree fragment that wires up the MACs, MCDMAs and the Si5328 for the ports active on the target. The overlay is applied after the board BSP.

In the PetaLinux flow both project-spec/ trees are copied into the project when it is created; in the Yocto flow the board layer and the overlay are added as layers, and the device-tree files are included only in the Linux (APU) domain device tree.

The `port-config.dtsi` overlay

Per port, on the device-tree node that the System Device Tree generates for the MAC:

compatible — on Zynq UltraScale+, "xlnx,cmac-usplus-3.1" or "xlnx,l-ethernet-4.0", which the HSE kernel patch binds to.
axistream-connected → the port’s MCDMA node, plus the MCDMA channel interrupts (mm2s_ch1_introut / s2mm_ch1_introut) with their interrupt-parent / interrupts: the driver looks the interrupts up by name on the MAC node.
local-mac-address (00:0a:35:00:00:00 for port 0, 00:0a:35:00:00:01 for port 1), xlnx,channel-ids, xlnx,num-queues, xlnx,addrwidth.
max-speed (100000 or 40000). On Versal also xlnx,mrmac-rate = <100000>: the driver reads max-speed first, and without the override the generated value (the per-lane rate, 25000) would bring the port up at 25G.
Versal only: the gt-ctrl-gpios, gt-tx-dpath-gpios, gt-rx-dpath-gpios, gt-ctrl-rate-gpios, gt-tx-rst-done-gpios and gt-rx-rst-done-gpios properties on the port’s GT-control GPIO, and xlnx,gtlane = <0>; the three unused mrmac_1/_2/_3 nodes the generator emits per MRMAC are disabled.

It also overrides each MCDMA node’s compatible to "xlnx,eth-dma", and instantiates the Si5328 (silabs,si5328, clock-generator@68 on the shared clock IIC bus, 114.285 MHz crystal, clk0 output at 322.265625 MHz for 100G or 156.25 MHz for 40G).

Modifications layered on the stock BSPs

This list answers “what would I lose if I replaced the BSP with the stock one?”

AXI Ethernet + MCDMA driver (bsp.cfg). CONFIG_XILINX_AXI_EMAC with CONFIG_AXIENET_HAS_MCDMA, CONFIG_GPIO_XILINX, CONFIG_I2C_XILINX and CONFIG_NET_PKTGEN=m (used by the self-test); the ZynqMP BSPs also enable the Si5324/Si5328 clock driver (CONFIG_COMMON_CLK_SI5324).
MCDMA compatible override (device tree). xilinx_axienet maps the MCDMA registers itself, but the standalone xilinx_dma dmaengine driver also matches the MCDMA node and claims the region first, so the probe fails with -EBUSY. Because CONFIG_XILINX_AXI_EMAC depends on XILINX_DMA, the dmaengine driver cannot simply be disabled; the compatible = "xlnx,eth-dma" override keeps it off the MCDMA.

Kernel patches (recipes-kernel/linux/linux-xlnx/, registered in linux-xlnx_%.bbappend):

Patch	Targets	Purpose
`0001-clk-si5324-enable-ckout2-for-2x-qsfp28-fmc`	all	Enables the Si5328 CKOUT2 output (GBTCLK1, port 1’s reference clock), which the stock driver disables, and gives it CKOUT1’s divider.
`0002-net-axienet-mrmac-carrier-link-monitor`	Versal	MRMAC link monitor: the interface opens with carrier off, the monitor drives the carrier from block lock and RX status, recovers the link with the same reset sequence as `open()` while it is down, and logs `MRMAC link up` / `MRMAC link down`.
`0003`/`0006 …-default-to-1024-RX-descriptors…`	all	RX ring default of 1024 descriptors on MRMAC and HSE ports.
`0004`/`0007 …-report-the-MCDMA-S2MM-packet-drop-count…`	all	The MCDMA S2MM packet-drop count as `rx_dma_pkt_drop` in `ethtool -S`.
`0002-net-axienet-add-hse-cmac-l-ethernet-support`	ZynqMP	Adds the CMAC / 40G-50G subsystem (“HSE”) MAC type to `xilinx_axienet`, with a link monitor.
`0003-net-axienet-hse-exempt-pcs-handle-requirement`	ZynqMP	Lets the PHY-less HSE ports probe without a `pcs-handle` / `phy-handle`.
`0004-net-axienet-hse-fix-l_ethernet-register-map`	ZynqMP	Uses the 40G/50G subsystem’s own register offsets and clears its SLVERR-indication bits (status reads racing the GT clock bring-up return a marker instead of a fatal bus error).
`0005-net-axienet-hse-fix-latched-low-link-poll`	ZynqMP	Reads the latched-low RX status correctly, so the link can come up on an idle system.
`0008`, `0009`, `0010 …-hse-…monitor…`	ZynqMP	The HSE link monitor: statistics latching, bad-code / BIP detection, RX-only recovery resets, no full GT reset without a usable signal, interval-based status sampling, visible partner outages, RX wedge restart, and the `hse_*` counters.

Board device-tree fixes. The board’s TI DP83867 Ethernet PHY(s) with their RGMII delays and a fixed MAC address (board-user.dtsi on ZynqMP, system-user.dtsi on Versal, which also pins the ZOCL node to xlnx,zocl-versal).
VCK190 U-Boot. FMC VADJ enabled at 1.5 V before every boot (PetaLinux platform-top.h, Yocto vck190-vadj-bootcmd.cfg), and a larger device-tree size headroom (Yocto).
Kernel command line and hostname. See the PetaLinux and Yocto pages.
Loopback self-test app. The qsfp-loopback-test recipe (recipes-apps/qsfp-loopback-test/), installed in every image.
Root filesystem additions. ethtool, iperf3, iproute2 (nstat on Yocto), i2c-tools, phytool and the other tools listed on the Yocto page.

Adding a kernel config option, patch, package or device-tree node

Kernel config: append CONFIG_<name>=y to the board BSP’s recipes-kernel/linux/linux-xlnx/bsp.cfg.
Kernel patch: drop the .patch into recipes-kernel/linux/linux-xlnx/ and add a SRC_URI:append line to linux-xlnx_%.bbappend.
Rootfs package: PetaLinux: add CONFIG_<package>=y to configs/rootfs_config (and declare it in meta-user/conf/user-rootfsconfig if it is not in the default menu). Yocto: add it to IMAGE_INSTALL:append in recipes-core/images/edf-linux-disk-image.bbappend.
Per-board device tree: edit board-user.dtsi (Yocto ZynqMP), system-user.dtsi (Yocto Versal and PetaLinux).
Per-port device tree: edit the target’s port-config.dtsi overlay.

Tip

After a structurally-changed XSA (new peripherals/addresses), a PetaLinux petalinux-config --get-hw-description on an existing project keeps the stale System Device Tree (“workspace already set up, leaving as-is”). Remove <target>/components/plnx_workspace before re-importing to force a fresh one, then rebuild (this reuses the sstate cache, so it is incremental).

Where build outputs land

Path	Contents
`Vivado/<target>/`	Vivado project. `qsfp_wrapper.xsa` is the export.
`Vivado/logs/`	Per-target Vivado build logs.
`Vitis/<target>_workspace/`, `Vitis/boot/<target>/`	Vitis workspace; standalone boot file.
`PetaLinux/<target>/images/linux/`	`BOOT.BIN`, `image.ub`, `boot.scr`, `rootfs.tar.gz`, etc.
`Yocto/<target>/images/linux/`	`rootfs.wic.xz`, `rootfs.wic.bmap`, `BOOT.BIN`, kernel, device tree, etc.
`bootimages/`	Per-target zipped boot files (`2x-qsfp28-fmc_<target>_<flow>-2025-2.zip`).

None of these directories are committed to the repository.
